SG2843D

SOP-8, control IC, Low start-up current, Double-pulse suppression, High-current totem-pole output, 30V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.18~0.28 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.18~0.28

PartNumber:: SG2843D

Brand:: Microsemi Corporation - Microsemi | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-19

From Other Seller

Part Number:SG2843D
US $0.18 - 0.28
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

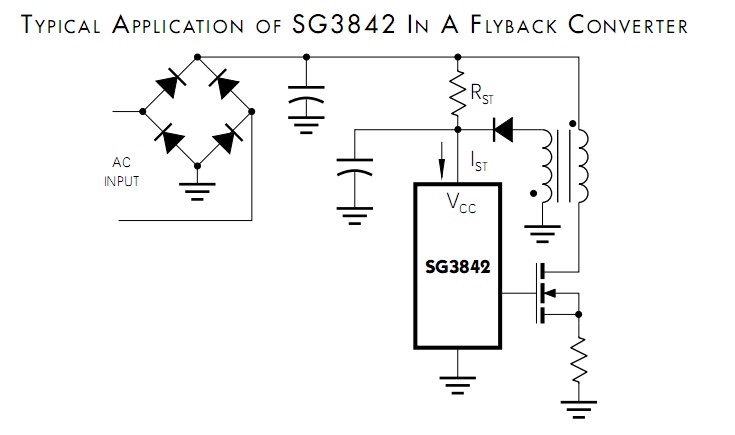

The SG2843D is the control IC which provides all the necessary features to implement off-line fixed frequency, current-mode switching power supplies with a minimum number of external components. Current-mode architecture demonstrates improved line regulation, improved load regulation, pulse-by-pulse current limiting and inherent protection of the power supply output switch.

Parametrics

SG2843D absolute maximum ratings: (1)Supply Voltage (ICC < 30mA): Self Limiting; (2)Supply Voltage (Low Impedance Source): 30V; (3)Output Current (Peak): ±1A; (4)Output Current (Continuous): 350mA; (5)Output Energy (Capacitive Load): 5μJ; (6)Analog Inputs (Pins 2, 3): -0.3V to +6.3V; (7)Error Amp Output Sink Current: 10mA; (8)Power Dissipation at TA = 25°C (DIL-8): 1W; (9)Operating Junction Temperature Hermetic: 150℃; (10)Storage Temperature Range: -65 to +150℃; (11)Lead Temperature (Soldering, 10 Seconds): 300℃.

Features

SG2843D features: (1)Optimized for off-line control; (2)Low start-up current( ＜1mA ); (3)Automatic feed forward compensation; (4)Trimmed oscillator discharge current; (5)Pulse-by-pulse current limiting; (6)Enhanced load response characteristics; (7)Under-boltage lockout with 6V hystersis; (8)Double-pulse suppression; (9)High-current totem-pole output.
