Product Summary

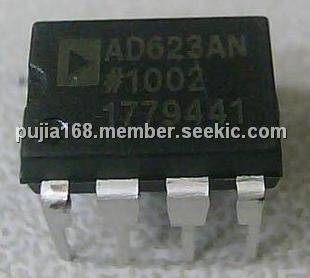

The AD623AN is an integrated single supply instrumentation amplifier that delivers rail-to-rail output swing on a single supply (+3 V to +12 V supplies). It offers superior user flexibility by allowing single gain set resistor programming, and conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623AN is configured for unity gain (G = 1) and with an external resistor, the device can be programmed for gains up to 1,000.

Parametrics

AD623AN absolute maximum ratings: (1)Supply Voltage: ±6 V; (2)Internal Power Dissipation: 650 mW; (3)Differential Input Voltage: ±6 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range (N, R, RM): –65℃ to +125℃; (6)Operating Temperature Range (A): –40℃ to +85℃; (7)lead temperature ranges (Soldering 10 seconds): +300℃.

Features

AD623AN features: (1)Easy to Use; (2)Higher Performance than Discrete Design; (3)Single and Dual Supply Operation; (4)Rail-to-Rail Output Swing; (5)Input Voltage Range Extends 150 mV Below Ground (Single Supply); (6)Low Power, 575 mA Max Supply Current; (7)Gain Set with One External Resistor; (8)Gain Range 1 (No Resistor) to 1,000.

Diagrams

AD623AN simplified block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD623AN
AD623AN

Analog Devices Inc

IC INSTR AMP R-R OUT 8-DIP

Data Sheet

1-100: $1.78
AD623ANZ
AD623ANZ


IC AMP INST R-R LP 8DIP

Data Sheet

0-1: $2.84
1-10: $2.54
10-25: $2.28
25-100: $2.08
100-250: $1.88
250-500: $1.69
500-1000: $1.42
1000-2500: $1.35
