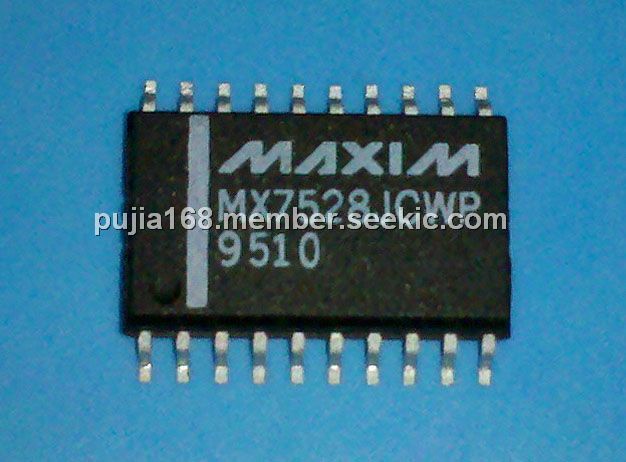

Product Summary

The MX7528JCWP contains two 8-bit multiplying digital-to-analog converter (DAC).Separate on-chip latches hold the input data for each DAC to allow easy interface to microprocessors.The data load operation MX7528JCWP is similar to a static RAM write cycle. Data is loaded using only CS,WR,and DAC select (DAC A/DAC B)input.

Parametrics

MX7528JCWP absolute maximum ratings: (1)VDD to AGND: 0V to +17V; (2)VDD to DGND: 0V to +7V; (3)digital input voltage to DGND: -0.3V,VDD; (4)Pin2,Pin20 to AGND: -0.3V; (5)VREFA,VREFB,to AGND: ±25V; (6)VRFBA,VRFBB,to AGND: ±25V; (7)power dissipation (any package): +75℃; (8)power dissipation (any package): derate above +75℃; (9)storage temperature range: -65℃ to +160℃; (10)lead temperature (soldering,10sec): +300℃.

Features

MX7528JCWP features: (1)data latches for both DACs; (2)+5V to +15V single supply operation; (3)±1/2 LSB linearity; (4)microprocessor compatible; (5)four quadrant multiplication; (6)DACs matched to 1%.

Diagrams

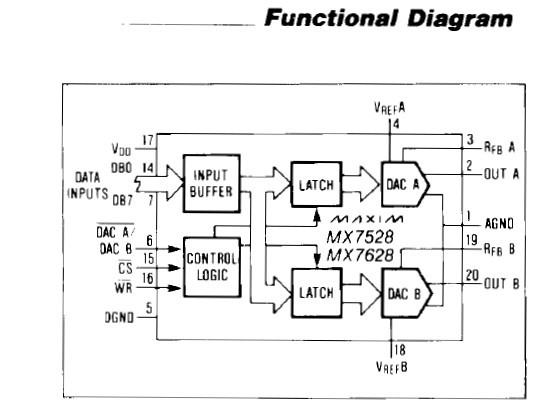

MX7528JCWP functional diagram
