Product Summary

The TLC7528CN is a dual, 8-bit, digital-to-analog converter designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching. The TLC7528CN operates from a 5-V to 15-V power supply and dissipates less than 15 mW (typical). The 2- or 4-quadrant multiplying makes the TLC7528CN a sound choice for many microprocessor-controlled gain-setting and signal-control applications. It can be operated in voltage mode, which produces a voltage output rather than a current output. The TLC7528CN is characterized for operation from 0℃ to 70℃.

Parametrics

TLC7528CN absolute maximum ratings: (1)Supply voltage range, VDD (to AGND or DGND): –0.3 V to 16.5 V; (2)Voltage between AGND and DGND: ±VDD; (3)Input voltage range, VI (to DGND): –0.3 V to VDD + 0.3; (4)Reference voltage, VrefA or VrefB (to AGND): ±25 V; (5)Feedback voltage VRFBA or VRFBB (to AGND): ±25 V; (6)Input voltage (voltage mode out A, out B to AGND): –0.3 V to VDD + 0.3; (7)Output voltage, VOA or VOB (to AGND): ±25 V; (8)Peak input current: 10 mA; (9)Operating free-air temperature range, TA: 0 to 70℃; (10)Storage temperature range, Tstg: –65 to 150℃; (11)Case temperature for 10 seconds, TC: FN package: 260℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DW or N package: 260℃.

Features

TLC7528CN features: (1)Easily Interfaced to Microprocessors; (2)On-Chip Data Latches; (3)Monotonic Over the Entire A/D Conversion Range; (4)Interchangeable With Analog Devices AD7528 and PMI PM-7528; (5)Fast Control Signaling for Digital Signal Processor (DSP) Applications Including Interface With TMS320; (6)Voltage-Mode Operation; (7)CMOS Technology.

Diagrams

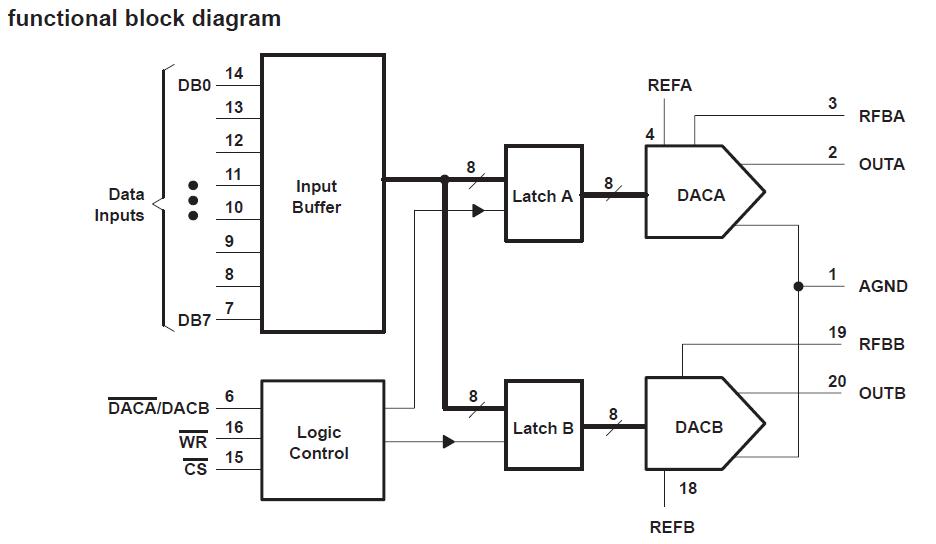

TLC7528CN functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLC7528CN
TLC7528CN
Texas Instruments
DAC (D/A Converters) Dual 8bit Mult
Data Sheet
0-1: $2.02
1-25: $1.85
25-100: $1.48
100-250: $1.30
TLC7528CNE4
TLC7528CNE4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1: $2.08
1-25: $1.71
25-100: $1.49
100-250: $1.30
TLC7528CNS
TLC7528CNS
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1: $2.52
1-25: $2.06
25-100: $1.81
100-250: $1.58
TLC7528CNSG4
TLC7528CNSG4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1: $2.52
1-25: $2.06
25-100: $1.81
100-250: $1.58
TLC7528CNSR
TLC7528CNSR
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1480: $1.13
1480-2000: $1.09
2000-5000: $1.04
TLC7528CNSRG4
TLC7528CNSRG4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1480: $1.13
1480-2000: $1.09
2000-5000: $1.04
