Product Summary
The AD7528KN is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3" wide 20-lead DIPs and in 20-lead surface mount packages. The AD7528KN operates from a +5 V to +15 V power supply, dissipating only 20 mW of power. The device offers excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC. The applications of the AD7528KN are Gain/Attenuation, Filter Parameters, Stereo Audio Circuits, X-Y Graphics.
Parametrics
AD7528KN absolute maximum ratings: (1)VDD to AGND:0 V, +17 V; (2)VDD to DGND:0 V, +17 V; (3)AGND to DGND:VDD + 0.3 V; (4)DGND to AGND:VDD + 0.3 V; (5)Digital Input Voltage to DGND:–0.3 V, VDD + 0.3 V; (6)VPIN2, VPIN20 to AGND:–0.3 V, VDD + 0.3 V; (7)VREF A, VREF B to AGND:±25 V; (8)VRFB A, VRFB B to AGND:±25 V; (9)Power Dissipation (Any Package) to +75℃:450 mW; (10)Derates above +75℃ by:6 mW/℃; (11)Operating Temperature Range:–40℃ to +85℃; (12)Storage Temperature:–65℃ to +150℃; (13)Lead Temperature (Soldering, 10 secs):+300℃.
Features
AD7528KN features: (1)On-Chip Latches for Both DACs; (2)+5 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible; (6)Latch Free (Protection Schottkys not Required).

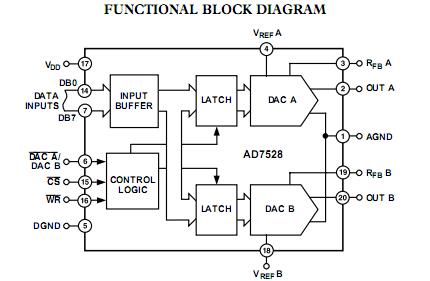

Diagrams
