Product Summary

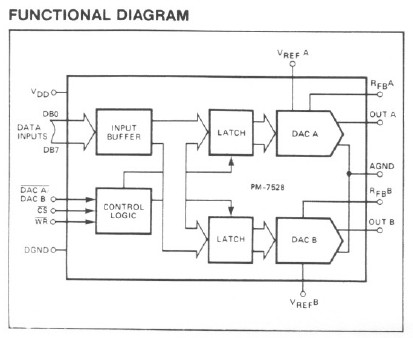

The PM7528FS contains two 8 bit multiplying digital-to-analog converters. Excellent DAC-to-DAC matching and tacking results from monolithic construction. The PM7528FS consists of two thin-film R-2R resistor-ladder networks, tracking span resistors, two data latches, one input buffer, and control logoc. Operation from a 5 to 15 volt single power supply dissipates only 20mw of power in a space saving 20-pin 0.3 wide DIP. The PM7528FS features circuitry designed to protect against damage from electrostatic discharges.

Parametrics

PM7528FS absolute maximum ratings: (1)VDD to AGND: 0v, 17v; (2)VDD to DGND: 0v, 17v; (3)AGND to DGND: 0v, VDD; (4)digital input voltage to DGND: -0.3v, +15v; (5)vpin2, VPIN20 to AGND: -0.3v, +15v; (6)VREFA, VREF B to AGND: ±25V ; (7)VRFB, VRFB to AGND: ±25V; (8)power dissipation to 75℃: 450mW; derate above +75℃by: 6mW/℃; (9)operating temperature range: AR, ARC, BR, BRC versions: -55℃ to +125℃; ER, FR versions: -25℃ to +85℃; GP, HP, HPC, HS versions: 0℃ to 70℃; (10)dice junction temperature: +150℃; (11)storage temperature: -65℃ to 150℃; (12)lead temperature: +30℃.

Features

PM7528FS features: (1)on chip latches for both DACs; (2)+5v to +15v single supply operation; (3)DACs matched to 1%; (4)four quadrant multiplication; (5)TTL/CMOS compatible; (6)8 bit endpoint linearity(±1/2LSB); (7)full temperature operation; (8)low power consumption; (9)microprocessor compatible; (10)improved ESD resistance; (11)automatically insertable cerdlp and plastic packages; (12)available in surface mount SO, PLCC and LCC packages.
