Product Summary

The OPA2604AU is a dual, FET-input operational amplifier designed for enhanced AC performance. The OPA2604AU features low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance. The low-noise FET input of the OPA2604AU provides wide dynamic range, even with high source impedance. Offset voltage of OPA2604AU is laser-trimmed to minimize the need for interstage coupling capacitors. The OPA2604AU is available in SO-8 surface-mount packages, specified for the –25℃ to +85℃ temperature range.

Parametrics

OPA2604AU absolute maximum ratings: (1)Power Supply Voltage: ±25V; (2)Input Voltage: (V–)–1V to (V+)+1V; (3)Output Short Circuit to Ground: Continuous; (4)Operating Temperature: –40℃ to +100℃; (5)Storage Temperature: –40℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s) AP: +300℃; (8)Lead Temperature (soldering, 3s) AU: +260℃.

Features

OPA2604AU features: (1)low distortion: 0.0003% at 1kHz; (2)low noise: 10nV/OHz; (3)high slew rate: 25V/ms; (4)wide gain-bandwidth: 20MHz; (5)unity-gain stable; (6)wide supply range: VS = ±4.5 to ±24V; (7)drives 600W loads.

Diagrams

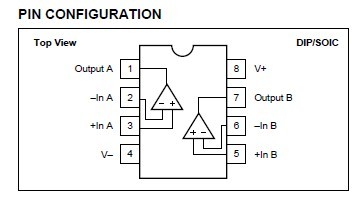

OPA2604AU PIN CONFIGURATION
