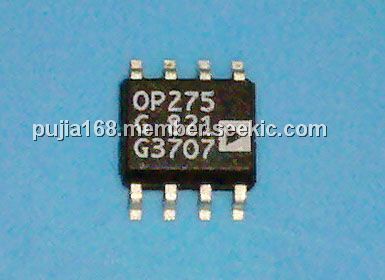

Product Summary

The OP275GS is the amplifier to feature the Butler Amplifier front-end. This new front-end design of OP275GS connects both bipo lar and JFET transistors, gaining amplifiers with the accuracy and low noise performance of bipolar transistors, and the speed and sound quality of JFETs.

Parametrics

OP275GS absolute maximum ratings: (1)supply voltage is ±22V;(2)input voltage is ±22V;(3)differential tnput voltage is ±7.5V;(4)output short-circuit duration to GND3 is indefinite; (5)storage temperature ranges from –65℃ to +150℃;(6)operating temperature ranges from –40℃ to +85℃;(7)junction temperature ranges (P, S Package)from –65℃ to +150℃;(8)lead temperature range (soldering, 60 sec)is +300℃.

Features

OP275GS features: (1)excellent sonic characteristics; (2)low noise: 6 nV/√Hz; (3)low distortion: 0.0006%; (4)high slew rate: 22 V/us; (5)wide bandwidth: 9 MHz; (6)low supply current: 5 mA; (7)low offset voltage: 1 mV; (8)low offset current: 2 nA; (9)unity gain stable; (10)SOIC-8 package.

Diagrams

OP275GS PIN CONNECTIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP275GS
OP275GS

IC AMP AUDIO STER CLASS AB 8SOIC
Data Sheet
0-196: $1.15
OP275GS-REEL
OP275GS-REEL

IC AMP AUDIO STER CLASS AB 8SOIC
Data Sheet
0-2500: $0.75
OP275GSZ-REEL7
OP275GSZ-REEL7

IC AMP AUDIO STER CLASS AB 8SOIC
Data Sheet
0-1000: $0.72
1000-2000: $0.67
2000-5000: $0.66
OP275GS-REEL7
OP275GS-REEL7

IC AMP AUDIO STER CLASS AB 8SOIC
Data Sheet
Negotiable
OP275GSZ
OP275GSZ

IC AMP AUDIO STER CLASS AB 8SOIC
Data Sheet
0-1: $1.54
1-10: $1.39
10-100: $1.12
100-250: $0.99
250-500: $0.87
500-1000: $0.72
1000-2500: $0.67
2500-5000: $0.66
OP275GSZ-REEL
OP275GSZ-REEL

IC AMP AUDIO STER CLASS AB 8SOIC
Data Sheet
0-2500: $0.67
