Product Summary

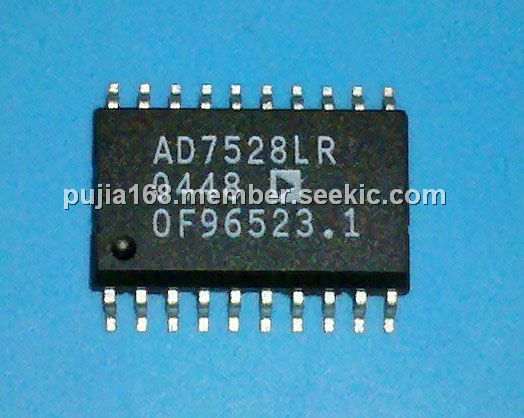

The AD7528LR is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3 wide 20-lead DIPs and in 20-lead surface mount packages. The device AD7528LR operates from a +5 V to +15 V power supply, dissipating only 20 mW of power. Both DACs AD7528LR offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.
Parametrics
AD7528L Rabsolute maximum ratings: (1)VDD to AGND: 0V, +17V; (2)VDD to DGND: 0V, +17V; (3)AGND to DGND: VDD+0.3V; (4)DGND to AGND: VDD+0.3V; (5)Digital Input Voltage to DGND: –0.3V, VDD+0.3V; (6)VPIN2, VPIN20 to AGND:–0.3 V, VDD + 0.3V; (7)VREF A, VREF B to AGND: ±25V; (8)VRFB A, VRFB B to AGND: ±25V; (9)Power Dissipation (Any Package) to +75℃:450 mW; (10)Derates above +75℃ by: 6 mW/℃; (11)Storage Temperature: –65℃ to +150℃; (12)Lead Temperature (Soldering, 10 secs):+300℃.
Features
AD7528LR features: (1)On-Chip Latches for Both DACs; (2)+5 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible; (6)Latch Free (Protection Schottkys not Required).

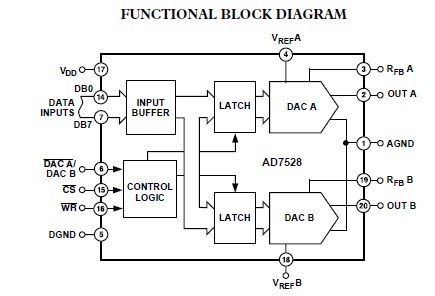

Diagrams
