Product Summary

The SA612A is a low-power VHF monolithic double-balanced mixer with on-board oscillator and voltage regulator. It is intended for low cost, low power communication systems with signal frequencies to 500MHz and local oscillator frequencies as high as 200MHz. The mixer is a Gilbert cell multiplier configuration which provides gain of 14dB or more at 45MHz.

Parametrics

SA612A absolute maximum ratings: (1)Maximum operating voltage: 9 V; (2)Storage temperature: -65 to +150 ℃; (3)Operating ambient temperature range: -40 to +85℃.

Features

SA612A features: (1)Low current consumption; (2)Low cost; (3)Operation to 500MHz; (4)Low radiated energy; (5)Low external parts count; suitable for crystal/ceramic filter; (6)Excellent sensitivity, gain, and noise figure.

Diagrams

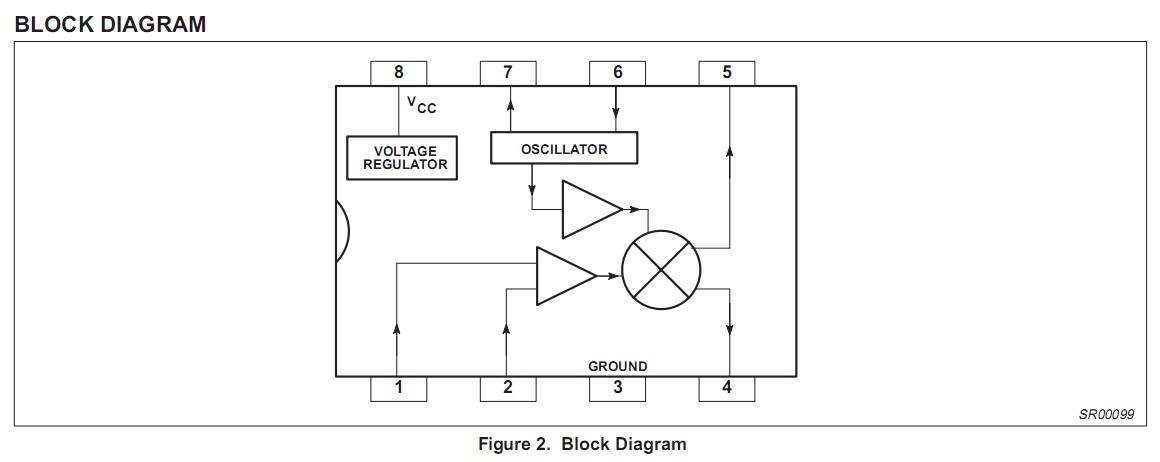

SA612A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SA612A
SA612A
Other

Data Sheet
Negotiable
SA612AD/01
SA612AD/01
NXP Semiconductors
RF Mixer LP VHF DBL-BAL W/OSC
Data Sheet
Negotiable
SA612AD/01,112
SA612AD/01,112
NXP Semiconductors
RF Mixer LP VHF DBL-BAL W/OSC
Data Sheet
0-1: $1.05
1-25: $0.91
25-100: $0.63
100-250: $0.59
SA612AD/01,118
SA612AD/01,118
NXP Semiconductors
RF Mixer DOUBLE BAL MIXER/OSCILLATOR
Data Sheet
0-1: $1.18
1-25: $1.05
25-100: $0.95
100-250: $0.84
SA612AN,112
SA612AN,112

IC MIXER/OSC DOUBLE-BAL 8-DIP
Data Sheet
Negotiable
SA612AN/01,112
SA612AN/01,112
NXP Semiconductors
RF Wireless Misc LP VHF DBL-BAL W/OSC
Data Sheet
0-1: $1.35
1-25: $1.13
25-100: $1.05
100-250: $0.90
