IR2104S

half-bridge IGBT driver, 8-SOIC, power MOSFET, -0.3 to 25 V, Floating channel, Undervoltage lockout

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.38~0.48 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.38~0.48

PartNumber:: IR2104S

Brand:: International Rectifier - IR | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-07

From Other Seller

Part Number:IR2104S
US $0.38 - 0.48
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

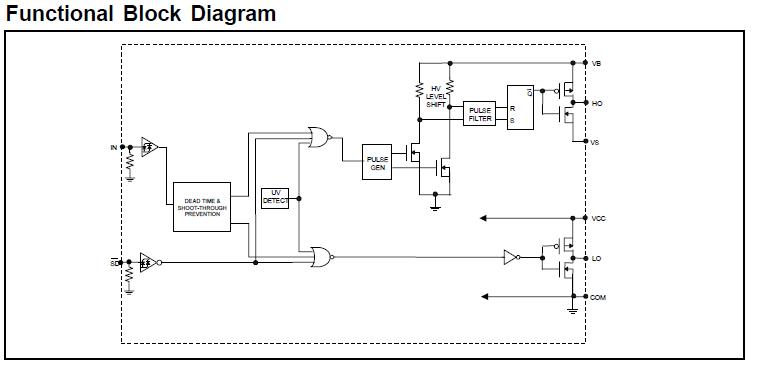

Product Summary

The IR2104S is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.

Parametrics

IR2104S absolute maximum ratings: (1)VB, High side floating absolute voltage: -0.3 to 625V; (2)VS, High side floating supply offset voltage: VB - 25 to VB + 0.3 V; (3)VHO, High side floating output voltage: VS - 0.3 to VB + 0.3 V; (4)VCC, Low side and logic fixed supply voltage: -0.3 TO 25 V; (5)VLO, Low side output voltage: -0.3 to VCC + 0.3 V; (6)TJ, Junction temperature: 150℃ max; (7)TS, Storage temperature: -55 to 150℃; (8)TL, Lead temperature (soldering, 10 seconds): 300℃ max.

Features

IR2104S features: (1)Floating channel designed for bootstrap operation Fully operational to +600V; (2)Tolerant to negative transient voltage dV/dt immune; (3)Gate drive supply range from 10 to 20V; (4)Undervoltage lockout; (5)3.3V, 5V and 15V input logic compatible; (6)Cross-conduction prevention logic; (7)Internally set deadtime; (8)High side output in phase with input; (9)Shut down input turns off both channels; (10)Matched propagation delay for both channels; (11)Also available LEAD-FREE.
