AD623AR

Single Supply, Rail-Rail, Low Cost Instrumentation Amplifier, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~1.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~1.25

PartNumber:: AD623AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-03

From Other Seller

Part Number:AD623AR
US $0.95 - 1.25
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

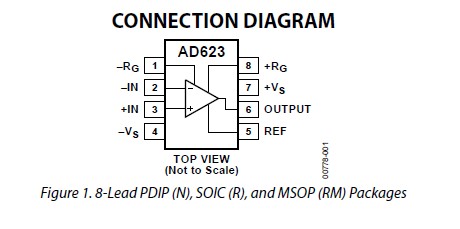

Product Summary

The AD623AR is an integrated single-supply instrumentation amplifier that delivers rail-to-rail output swing on a 3 V to 12 V supply. The AD623AR offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623AR is configured for unity gain (G = 1), and with an external resistor, the AD623AR can be programmed for gains up to 1000. The AD623AR holds errors to a minimum by providing superior ac CMRR that increases with increasing gain. Line noise, as well as line harmonics, are rejected because the CMRR remains constant up to 200 Hz. The AD623AR has a wide input common-mode range and can amplify signals that have a common-mode voltage 150 mV below ground. Although the design of the AD623AR was optimized to operate from a single supply, the AD623AR still provides superior performance when operated from a dual voltage supply (±2.5 V to ±6.0 V).

Parametrics

AD623AR absolute maximum ratings: (1)Supply Voltage: ±6 V; (2)Internal Power Dissipation: 650 mW; (3)Differential Input Voltage: ±6 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to +125℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

AD623AR features: (1)Easy to use; (2)Higher performance than discrete design; (3)Single-supply and dual-supply operation; (4)Rail-to-rail output swing; (5)Input voltage range extends 150 mV below ground (single supply); (6)Low power, 550 μA maximum supply current; (7)Gain set with one external resistor; (8)Noise: 35 nV/√Hz RTI noise @ 1 kHz (G = 1); (9)Excellent ac specifications.
