The NM24C04EM8X is a 4K-Bit Standard 2-Wire Bus Interface Serial EEPROM. The NM24C04EM8X conforms to all specifications in the Standard IIC 2-wire protocol and are designed to minimize device pin count, and simplify PC board layout requirements. Fairchild EEPROMs are designed and tested for applications requiring high endurance, high reliability and low power consumption.
Parametrics
NM24C04EM8X absolute maximum ratings: (1)Ambient Storage Temperature: –65 to +150℃; (2)All Input or Output Voltages with Respect to Ground: 6.5V to –0.3V; (3)Lead Temperature(Soldering, 10 seconds): +300℃; (4)ESD Rating: 2000V min.
Features
NM24C04EM8X features: (1)Extended operating voltage 2.7V – 5.5V; (2)400 KHz clock frequency (F) at 2.7V - 5.5V; (3)200μA active current typical; (4)10μA standby current typical; (5)1μA standby current typical (L); (6)0.1μA standby current typical (LZ); (7)IIC compatible interface: Provides bi-directional data transfer protocol; (8)Schmitt trigger inputs; (9)Sixteen byte page write mode: Minimizes total write time per byte; (10)Self timed write cycle: Typical write cycle time of 6ms; (11)Hardware Write Protect for upper half (NM24C05 only); (12)Endurance: 1,000,000 data changes; (13)Data retention greater than 40 years; (14)Packages available: 8-pin DIP, 8-pin SO, and 8-pin TSSOP.

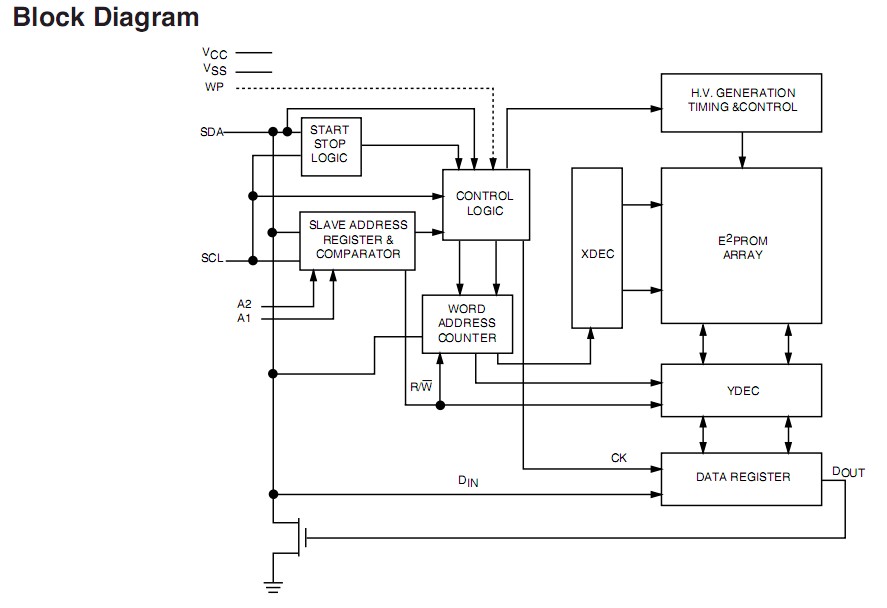

Diagrams
 |
