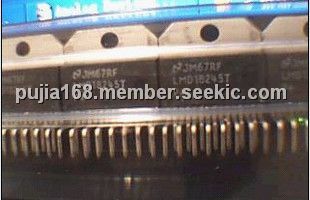

LMD18245T

3A, 55V, DMOS Full-Bridge, Motor Driver, 15-Lead, ZIP-11, Internal clamp diodes, Overcurrent protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.85~6.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.85~6.85

PartNumber:: LMD18245T

Brand:: National Semiconductor - NS | Pack: ZIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:LMD18245T
US $5.85 - 6.85
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LMD18245T full-bridge power amplifier incorporates all the circuit blocks required to drive and control current in a brushed type DC motor or one phase of a bipolar stepper motor. The multi-technology process used to build the device combines bipolar and CMOS control and protection circuitry with DMOS power switches on the same monolithic structure. The LMD18245T controls the motor current via a fixed off-time chopper technique. An all DMOS H-bridge power stage delivers continuous output currents up to 3A (6A peak) at supply voltages up to 55V. The DMOS power switch LMD18245T features low RDS(ON) for high efficiency, and a diode intrinsic to the DMOS body structure eliminates the discrete diodes typically required to clamp bipolar power stages. An innovative current sensing method eliminates the power loss associated with a sense resistor in series with the motor.

Parametrics

LMD18245T absolute maximum ratings: (1)DC Voltage at: OUT 1, VCC, and OUT 2: +60V; (2)COMP OUT, RC, M4, M3, M2, M1, BRAKE: +12V; (3)DC Voltage PGND to SGND: ±400mV; (4)Continuous Load Current: 3A; (5)Peak Load Current: 6A; (6)Junction Temperature (TJ(max)): +150℃; (7)Power Dissipation : TO-220 (TA = 25℃, Infinite Heatsink): 25W; TO-220 (TA = 25℃, Free Air): 3.5W; (8)ESD Susceptibility: 1500V; (9)Storage Temperature Range (TS): -40℃ to +150℃; (10)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

LMD18245T features: (1)DMOS power stage rated at 55V and 3A continuous; (2)Low RDS(ON) of typically 0.3W per power switch; (3)Internal clamp diodes; (4)Low-loss current sensing method; (5)Digital or analog control of motor current; (6)TTL and CMOS compatible inputs; (7)Thermal shutdow(outputs off) at TJ = 155℃; (8)Overcurrent protection; (9)No shoot-through currents; (10)15-lead TO-220 molded power package.
