IR2112S

High and low side driver, 16-SOIC, -0.3V to 525V, 50 V/ns, 1.25W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~0.55

PartNumber:: IR2112S

Brand:: International Rectifier - IR | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-07

From Other Seller

Part Number:IR2112S
US $0.45 - 0.55
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

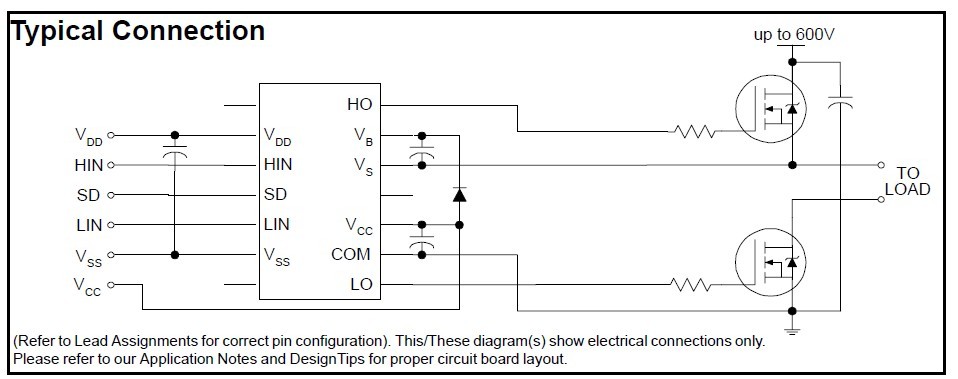

The IR2112S is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The IR2112S features a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications.

Parametrics

IR2112S absolute maximum ratings: (1)High side floating supply voltage:-0.3V to 625V; (2)High side floating supply offset voltage:VB - 25V to VB + 0.3V; (3)High side floating output voltage:VS - 0.3V to VB + 0.3V; (4)Low side fixed supply voltage:-0.3V to 25V; (5)Low side output voltage:-0.3V to VCC + 0.3V; (6)Logic supply voltage:-0.3V to VSS + 25V; (7)Logic supply offset voltage:VCC - 25V to VCC + 0.3V; (8)Logic input voltage (HIN, LIN & SD):VSS - 0.3V to VDD + 0.3V; (9)Allowable offset supply voltage transient:50 V/ns; (10)Package power dissipation:1.25W; (11)Thermal resistance, junction to ambient:100℃/W; (12)Junction temperature:150℃; (13)Storage temperature:-55℃ to 150℃; (14)Lead temperature (soldering, 10 seconds):300℃.

Features

IR2112S features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +500V or +600V; (3)Tolerant to negative transient voltage; (4)dV/dt immune; (5)Gate drive supply range from 10 to 20V; (6)Undervoltage lockout for both channels; (7)3.3V logic compatible; (8)Separate logic supply range from 3.3V to 20V; (9)Logic and power ground ±5V offset; (10)CMOS Schmitt-triggered inputs with pull-down; (11)Cycle by cycle edge-triggered shutdown logic; (12)Matched propagation delay for both channels; (13)Outputs in phase with inputs.
