Product Summary

The AD7528JR is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3 wide 20-lead DIPs and in 20-lead surface mount packages. The device AD7528JR operates from a +5 V to +15 V power supply, dissipating only 20 mW of power. Both DACs AD7528JR offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.

Parametrics

AD7528JR absolute maximum ratings: (1)VDD to AGND: 0V, +17V; (2)VDD to DGND: 0V, +17V; (3)AGND to DGND: VDD+0.3V; (4)DGND to AGND: VDD+0.3V; (5)Digital Input Voltage to DGND: –0.3V, VDD+0.3V; (6)VPIN2, VPIN20 to AGND:–0.3 V, VDD + 0.3V; (7)VREF A, VREF B to AGND: ±25V; (8)VRFB A, VRFB B to AGND: ±25V; (9)Power Dissipation (Any Package) to +75℃:450 mW; (10)Derates above +75℃ by: 6 mW/℃; (11)Storage Temperature: –65℃ to +150℃; (12)Lead Temperature (Soldering, 10 secs):+300℃.

Features

AD7528JR features: (1)On-Chip Latches for Both DACs; (2)+5 V to +15 V Operation; (3)DACs Matched to 1%; (4)Four Quadrant Multiplication; (5)TTL/CMOS Compatible; (6)Latch Free (Protection Schottkys not Required).

Diagrams

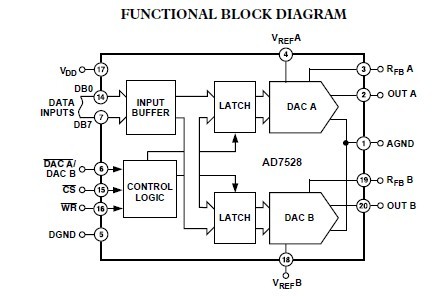

AD7528JR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7528JR
AD7528JR


IC DAC 8BIT DUAL MULTIPLY 20SOIC

Data Sheet

0-37: $7.18
AD7528JR-REEL
AD7528JR-REEL


IC DAC 8BIT DUAL MULT 20-SOIC

Data Sheet

Negotiable
AD7528JRZ
AD7528JRZ


IC DAC 8BIT DUAL MULT 20-SOIC

Data Sheet

0-1: $7.39
1-10: $6.72
10-100: $5.71
100-250: $5.21
250-500: $4.87
500-1000: $4.48
AD7528JRZ-REEL
AD7528JRZ-REEL


IC DAC 8BIT DUAL MULT 20-SOIC

Data Sheet

0-1000: $4.48
AD7528JRZ-REEL7
AD7528JRZ-REEL7


IC DAC 8BIT DUAL MULT 20SOIC

Data Sheet

0-1: $7.63
1-10: $6.92
10-25: $6.42
25-100: $5.88
AD7528JR-REEL7
AD7528JR-REEL7


IC DAC 8BIT DUAL MULT 20-SOIC

Data Sheet

0-400: $6.02
