Product Summary

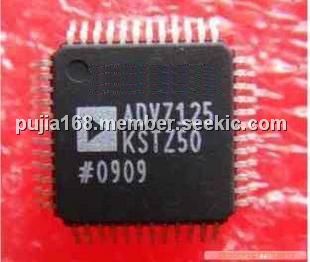

The ADV7125KSTZ50 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 8-bit video DACs with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The ADV7125KSTZ50 has three separate 8-bit-wide input ports. A single 5 V/3.3 V power supply and clock are all that are required to make the part functional. Applications of the ADV7125KSTZ50 include: Digital Video Systems, High Resolution Color Graphics, Digital Radio Modulation, Image Processing, Instrumentation, Video Signal Reconstruction, Automotive infotainment units.
Parametrics
ADV7125KSTZ50 absolute maximum ratings: (1)VAA to GND: 7V; (2)Voltage on Any Digital Pin: GND - 0.5V to VAA + 0.5V; (3)Ambient Operating Temperature (TA): -40℃ to +85℃; (4)Storage Temperature (TS): -65℃ to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase Soldering (1 Minute): 220℃; (8)IOUT to GND1: 0V to VAA.
Features
ADV7125KSTZ50 features: (1)330 MSPS throughput rate; (2)Triple 8-bit DACs; (3)RS-343A-/RS-170-compatible output; (4)Complementary outputs; (5)DAC output current range: 2.0 mA to 26.5 mA; (6)TTL-compatible inputs; (7)Internal Reference (1.235 V); (8)Single-supply +5 V/+3.3 V operation; (9)48-lead LQFP and LFCSP packages; (10)Low power dissipation; (11)Low power standby mode; (12)Industrial temperature range; (13)Pb-free (lead-free) packages; (14)Qualified for automotive applications.

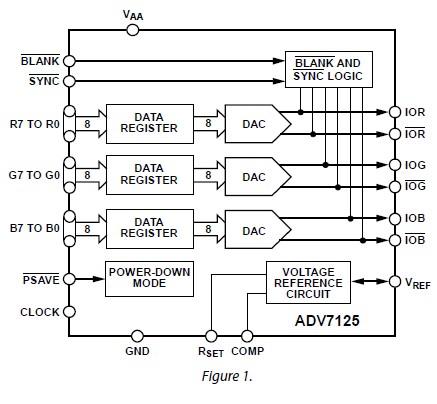

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADV7125KSTZ50 |
|
IC DAC VIDEO 3-CH 50MHZ 48LQFP |
Data Sheet |
|
|
||||||||||||||||||
|
ADV7125KSTZ50-REEL |
|
IC DAC VIDEO 3CH 330MHZ 48-LQFP |
Data Sheet |
|
|
||||||||||||||||||
