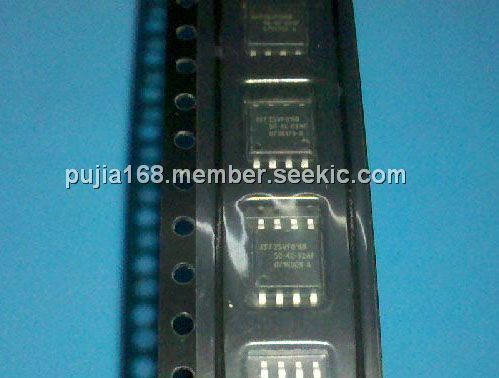

Product Summary

The SST25VF016B is a SPI serial flash. It features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B is enhanced with improved operating frequency and even lower power consumption than the original SST25VFxxxA devices. It is manufactured with the proprietary of SST, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

Parametrics

SST25VF016B absolute maxing ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Package Power Dissipation Capability (TA = 25℃): 1.0W; (6)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (7)Output Short Circuit Current: 50mA.

Features

SST25VF016B features: (1)Single Voltage Read and Write Operations: 2.7-3.6V; (2)Serial Interface Architecture: SPI Compatible: Mode 0 and Mode 3; (3)High Speed Clock Frequency: 50 MHz; (4)Superior Reliability: Endurance: 100,000 Cycles(typical); Greater than 100 years Data Retention; (5)Low Power Consumption: Active Read Current: 10 mA(typical); Standby Current: 5 μA (typical); (6)Flexible Erase Capability: Uniform 4 KByte sectors; Uniform 32 KByte overlay blocks; Uniform 64 KByte overlay blocks; (7)Fast Erase and Byte-Program: Chip-Erase Time: 35 ms(typical); Sector-/Block-Erase Time: 18 ms (typical); Byte-Program Time: 7μs (typical).

Diagrams

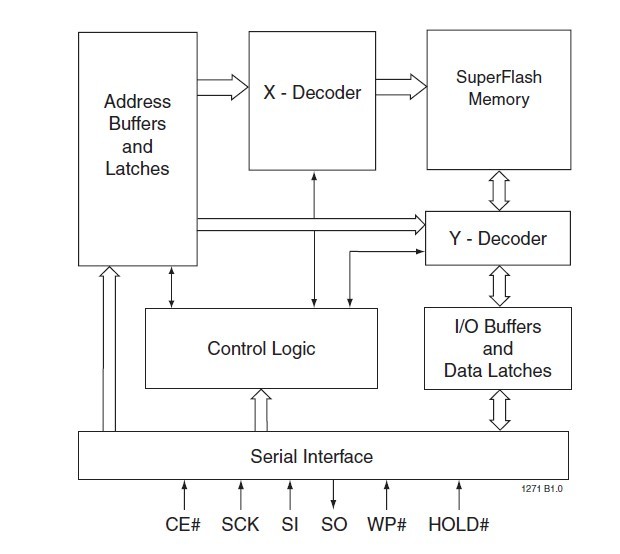

SST25VF016B block diagram
