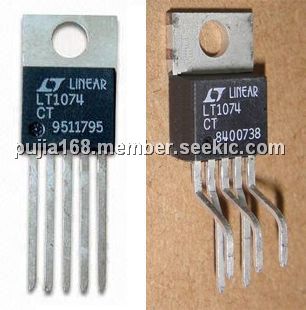

Product Summary

The LT1074CT is a 5A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components, are included on the chip. The topology is a classic positive buck configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1074CT to drive a tapped-inductor in the buck mode with output currents up to 10A. The applications of the LT1074CT include Buck Converter with Output Voltage Range of 2.5V to 50V, Tapped-Inductor Buck Converter with 10A Output at 5V, Positive-to-Negative Converter, Negative Boost Converter and Multiple Output Buck Converter.

Parametrics

LT1074CT absolute maximum ratings: (1)Input Voltage: 45V; (2)Switch Voltage with Respect to Input Voltage: 64V; (3)Switch Voltage with Respect to Ground Pin (VSW Negative): 35V; (4)Feedback Pin Voltage: –2V, +10V; (5)Shutdown Pin Voltage (Not to Exceed VIN): 40V; (6)ILIM Pin Voltage (Forced): 5.5V; (7)Maximum Operating Ambient Temperature Range, Commercial: 0℃ to 70℃; Industrial: –40℃ to 85℃; Military: –55℃ to 125℃; (8)Maximum Operating Junction Temperature Range, Commercial: 0℃ to 125℃; Industrial: –40℃ to 125℃; Military: – 55℃ to 150℃; (9)Maximum Storage Temperature: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1074CT features: (1)5A Onboard Switch (LT1074); (2)100kHz Switching Frequency; (3)Greatly Improved Dynamic Behavior; (4)Available in Low Cost 5 and 7-Lead Packages; (5)Only 8.5mA Quiescent Current; (6)Programmable Current Limit; (7)Operates Up to 60V Input; (8)Micropower Shutdown Mode.

Diagrams

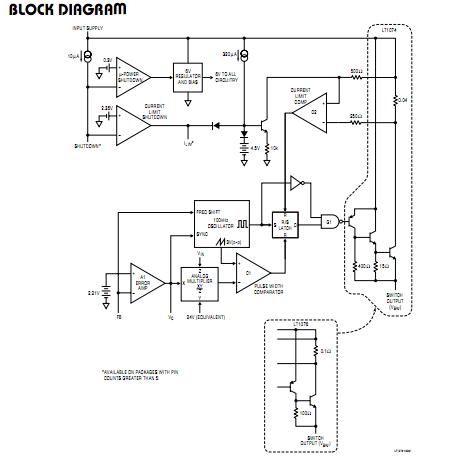

LT1074CT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1074CT
LT1074CT


IC REG MULTI CONFIG ADJ TO220-5

Data Sheet

0-1250: $3.15
LT1074CT#PBF
LT1074CT#PBF


IC REG MULTI CONFIG ADJ TO220-5

Data Sheet

0-1: $6.09
1-25: $4.04
25-100: $3.15
LT1074CT7#PBF
LT1074CT7#PBF


IC REG MULTI CONFIG ADJ TO220-7

Data Sheet

0-1: $7.12
1-25: $4.72
25-100: $3.66
LT1074CT7
LT1074CT7


IC REG MULTI CONFIG ADJ TO220-7

Data Sheet

0-1100: $3.66
