Product Summary

The LM2577S-ADJ regulator is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load with excellent line and load regulation. The LM2577S-ADJ is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. Requiring a minimum number of external components, the regulator LM2577S-ADJ is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

Parametrics

LM2577S-ADJ absolute maximum ratings: (1)Maximum Supply Voltage: 45V; (2)Output switch Voltage: 65V; (3)Output switch current: 6.0A; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: -65℃ to +150℃; (6)Maximum Junction Temperature: 150℃; (7)Minimum ESD ratings: 2kV.

Features

LM2577S-ADJ features: (1)Requires few external components; (2)NPN output switches 3.0A, castand off 65V; (3)Wide input voltage range: 3.5V to 40V; (4)Current-mode operatiofor improved transient response, line regulation, and current limit; (5)52 kHz internal oscillator; (6)Soft-start functioreduces in-rush current during start-up; (7)Output switch protected by current limit, under-voltage lockout, and thermal shutdown.

Diagrams

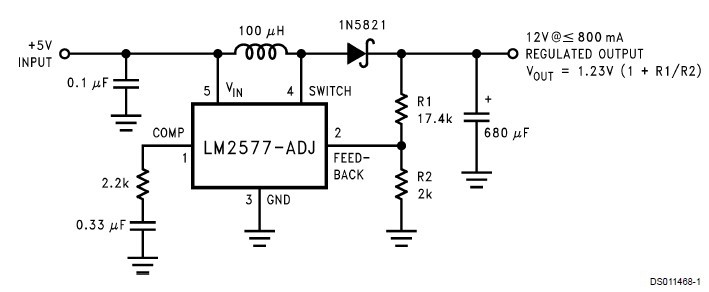

LM2577S-ADJ application circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM2577S-ADJ
LM2577S-ADJ

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-1: $4.21
1-25: $3.49
25-100: $3.18
100-250: $2.86
LM2577S-ADJ/NOPB
LM2577S-ADJ/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers STEP-UP VLTG REG

Data Sheet

0-1: $3.98
1-25: $3.26
25-100: $2.94
100-250: $2.70
