Product Summary

The AD8113JSTZ is a fully buffered crosspoint switch matrix that operates on ±12 V for audio applications and ±5 V for video applications. It offers a –3 dB signal bandwidth greater than 60 MHz and channel switch times of less than 60 ns with 0.1% settling for use in both analog and digital audio. The AD8113JSTZ operated at 20 kHz has crosstalk performance of –83 dB and isolation of 90 dB. In addition, ground/power pins surround all inputs and outputs to provide extra shielding for operation in the most demanding audio routing applications. The applications of the AD8113JSTZ include: Analog/Digital Audio Routers, Video Routers (NTSC, PAL, S-VIDEO, SECAM), Multimedia Systems, Video Conferencing, CCTV Surveillance.

Parametrics

AD8113JSTZ absolute maximum ratings: (1)Analog Supply Voltage (AVCC – AVEE): 26.0 V; (2)Digital Supply Voltage (DVCC – DGND):6 V; (3)Ground Potential Difference (AGND – DGND):±0.5 V; (4)Internal Power Dissipation:3.1 W; (5)Analog Input Voltage:Maintain Linear Output; (6)Digital Input Voltage :DVCC; (7)Output Voltage (Disabled Output):(AVCC–1.5 V) to (AVEE + 1.5 V); (8)Output Short-Circuit Duration:Momentary; (9)Storage Temperature Range:–65℃ to +125℃; (10)Lead Temperature Range (Soldering 10 sec):300℃.

Features

AD8113JSTZ features: (1)16 × 16 High Speed Nonblocking Switch Array; (2)Serial or Parallel Programming of Switch Array; (3)Serial Data Out Allows Daisy Chaining Control of Multiple 16 × 16s to Create Larger Switch Arrays; (4)Output Disable Allows Connection of Multiple Devices without Loading the Output Bus; (5)Complete Solution: Buffered Inputs; 16 Output Amplifiers; Operates on ±5 V or ±12 V supplies; Low Supply Current of 54 mA; (6)Excellent Audio Performance VS = ±12 V; ±10 V Output Swing; 0.002% THD @ 20 kHz Max. 20 V p-p (RL = 600Ω); (7)Excellent Video Performance VS = ±5 V: 10 MHz 0.1 dB Gain Flatness; 0.1% Differential Gain Error (RL = 1 k Ω); 0.1° Differential Phase Error (RL = 1 kΩ); (8)Excellent AC Performance: -3 dB Bandwidth 60 MHz; (9)Low All Hostile Crosstalk of: –83 dB @ 20 kHz; (10)Reset Pin Allows Disabling of All Outputs (Connected to a Capacitor to Ground Provides Power-On Reset Capability); (11)100-Lead LQFP (14 mm × 14 mm).

Diagrams

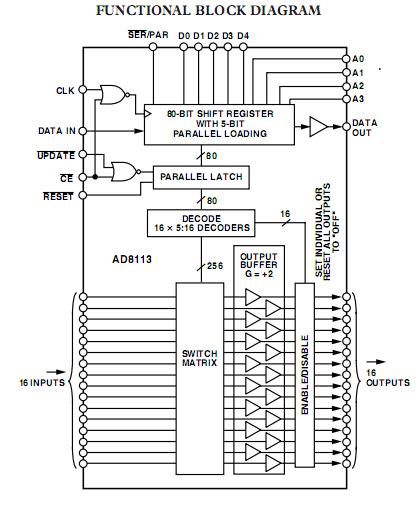

AD8113JSTZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8113JSTZ
AD8113JSTZ


IC VIDEO CROSSPOINT SWIT 100LQFP

Data Sheet

0-1: $26.33
1-10: $24.63
10-100: $21.35
100-250: $19.93
250-500: $18.98
