AD736JR

Low Cost, Low Power, True RMS-to-DC Converter, SOP8, Average Rectified Value, 200mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~3.50

PartNumber:: AD736JR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-19

From Other Seller

Part Number:AD736JR
US $3.00 - 3.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

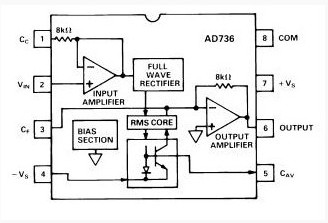

The AD736JR is a low power, precision, monolithic true rms-to-dc converter. It is laser trimmed to provide a maximum error of ± 0.3mV ± 0.3% of reading with sine-wave inputs. Furthermore, the AD736JR maintains high accuracy while measuring a wide range of input waveforms, including variable duty cycle pulses and triac (phase) controlled sine waves. The low cost and small physical size of this converter make AD736JR suitable for upgrading the performance of non-rms precision rectifiers in many applications.

Parametrics

AD736JR absolute maximum ratings: (1)Supply Voltage: ± 16.5 V; (2)Internal Power Dissipation: 200 mW; (3)Input Voltage: ±VS; (4)Output Short-Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and –VS; (6)Storage Temperature Range (Q): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 sec): +300℃; (10)ESD Rating: 500 V.

Features

AD736JR features: (1)True RMS Value; (2)Average Rectified Value; (3)Absolute Value; (4)200 mV Full-Scale Input Range (Larger Inputs with Input Attenuator); (5)Low Input Bias Current: 25 pA max; (6)High Accuracy: ±0.3 mV ±0.3% of Reading; (7)RMS Conversion with Signal Crest Factors Up to 5; (8)Wide Power Supply Range: +2.8 V, –3.2 V to ±16.5 V; (9)Low Power: 200 μA max Supply Current; (10)Buffered Voltage Output; (11)No External Trims Needed for Specified Accuracy.
