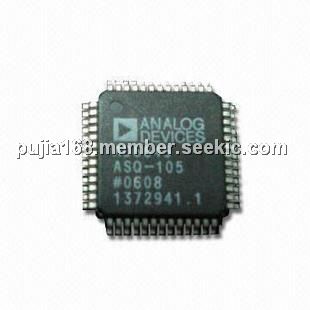

AD6645ASQ-105

14-bit analog-to-digital converter, 80 MSPS, 100 dB, 1.5 W, 200 MHz, 3.3 V, QFP-52

Rated 5 Rating 5 | reviews | Write a review

Price:: US $28.50~33.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $28.50~33.50

PartNumber:: AD6645ASQ-105

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-11

From Other Seller

Part Number:AD6645ASQ-105
US $28.50 - 33.50
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

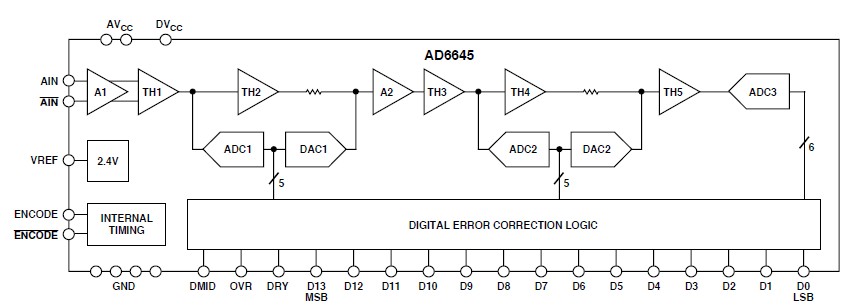

The AD6645ASQ-105 is a high-speed, high-performance, monolithic 14-bit analog-to-digital converter. All necessary functions, including track-and-hold (T/H) and reference, are included on the chip to provide a complete conversion solution. The AD6645ASQ-105 provides CMOS-compatible digital outputs. The applications of the AD6645ASQ-105 include: Multichannel, Multimode Receivers, Base Station Infrastructure, AMPS, IS-136, CDMA, GSM, WCDMA, Single Channel Digital Receivers, Antenna Array Processing, Communications Instrumentation, Radar, Infrared Imaging, Instrumentation.

Parametrics

AD6645ASQ-105 absolute maximum ratings: (1)AVCC Voltage: 0 to 7 V; (2)DVCC Voltage: 0 to 7 V; (3)Analog Input Voltage: 0 to AVCC V; (4)Analog Input Current: 25 mA; (5)Digital Input Voltage: 0 to AVCC V; (6)Digital Output Current: 4 mA; (7)Operating Temperature Range (Ambient): –40 to +85 ℃; (8)Maximum Junction Temperature: 150 ℃; (9)Lead Temperature (Soldering, 10 sec): 300 ℃; (10)Storage Temperature Range (Ambient): –65 to +150 ℃.

Features

AD6645ASQ-105 features: (1)80 MSPS Guaranteed Sample Rate; (2)SNR = 75 dB, fIN 15 MHz @ 80 MSPS; (3)SNR = 72 dB, fIN 200 MHz @ 80 MSPS; (4)SFDR = 89 dBc, fIN 70 MHz @ 80 MSPS; (5)100 dB Multitone SFDR; (6)IF Sampling to 200 MHz; (7)Sampling Jitter 0.1 ps; (8)1.5 W Power Dissipation; (9)Differential Analog Inputs; (10)Pin-Compatible to AD6644; (11)Two’s Complement Digital Output Format; (12)3.3 V CMOS-Compatible; (13)DataReady for Output Latching.
