Product Summary
The 2SC1971 is a RF power transistor with npn epitaxial planar type in VHF band application. It is suitable for 4 to 5 watts output power amplifiers in VHF band applications.
Parametrics
2SC1971 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 35 V ; (2)VCEO, Collector-Emitter Voltage: 17 V ; (3)VEBO, Emitter-Base Voltage: 4 V ; (4)IC, Collector Current-Continuous: 2 A ; (5)PC, Collector Power Dissipation @TC=25℃: 12.5 W ; (6)Collector Power Dissipation @Ta=25℃: 1.5 w; (7)TJ, Junction Temperature: 150 ℃ ; (8)Tstg, Storage Temperature Range: -55~150 ℃ ; (9)Rth-a, thermal resistance, junction to amboent: 83 ℃/w; (10)Rth-c, thermal resistance, junction to case: 10 ℃/w.
Features
2SC1971 features: (1)High Power Gain: Gpe≥ 10dB,f= 175MHz, PO= 6W; VCC= 13.5V; (2)emitter ballasted construction, gold metallization for high reliability and good performances; (3)TO-220 package similar is combinient for mouting; (4)ability of withstanding more than 20:1 load VSWR when operated at VCC=15.2 v, Po=6w, f=175MHz.

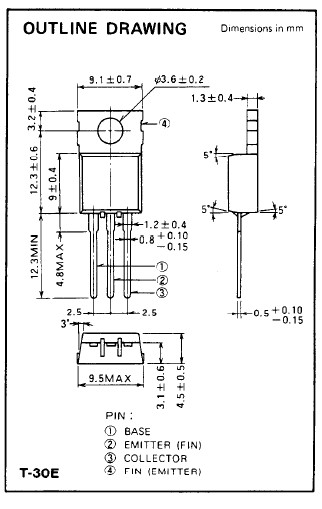

Diagrams
