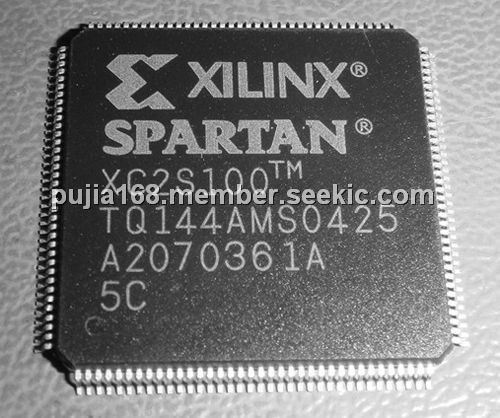

Product Summary

The XC2S100-5TQ144C is a Field-Programmable Gate Array. It gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XC2S100-5TQ144C offers densities ranging from 15,000 to 200,000 system gates. System performance is supported up to 200 MHz. Features of the XC2S100-5TQ144C include block RAM (to 56K bits), distributed RAM (to 75,264 bits), 16 selectable I/O standards, and four DLLs. Fast, predictable interconnect means that successive design iterations continue to meet timing requirements.

Parametrics

XC2S100-5TQ144C absolute maximum ratings: (1)VCCINT, Supply voltage relative to GND:–0.5 to 3.0 V; (2)VCCO, Supply voltage relative to GND: –0.5 to 4.0 V; (3)VREF, Input reference voltage: –0.5 to 3.6 V; (4)VIN, Input voltage relative to GND, 5V tolerant I/O: –0.5 to 5.5 V; No 5V tolerance: –0.5 to VCCO+0.5 V; (5)VTS, Voltage applied to 3-state output, 5V tolerant I/O: –0.5 to 5.5 V; No 5V tolerance:–0.5 to VCCO +0.5 V; (6)TSTG, Storage temperature (ambient): –65 to +150℃; (7)TJ, Junction temperature: +125℃.

Features

XC2S100-5TQ144C features: (1)Fully PCI compliant; (2)Low-power segmented routing architecture; (3)Full readback ability for verification/observability; (4)Dedicated carry logic for high-speed arithmetic; (5)Efficient multiplier support; (6)Cascade chain for wide-input functions; (7)Abundant registers/latches with enable, set, reset; (8)Four dedicated DLLs for advanced clock control; (9)Four primary low-skew global clock distribution nets; (10)IEEE 1149.1 compatible boundary scan logic.

Diagrams

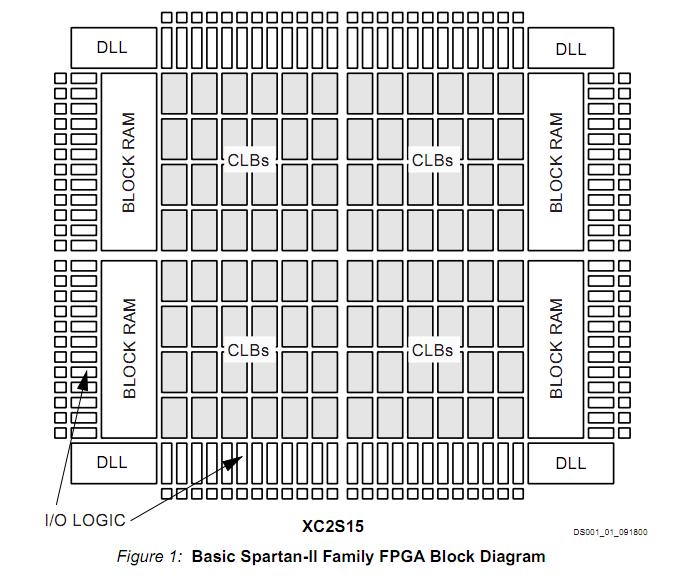

XC2S100-5TQ144C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC2S100-5TQ144C
XC2S100-5TQ144C


IC FPGA 2.5V 600 CLB'S 144-TQFP

Data Sheet

0-60: $10.56
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC2S100
XC2S100

Other


Data Sheet

Negotiable
XC2S100-5FG256C
XC2S100-5FG256C


IC FPGA 2.5V 600 CLB'S 256-FBGA

Data Sheet

0-90: $14.79
XC2S100-5FG256I
XC2S100-5FG256I


IC FPGA 2.5V I-TEMP 256-FBGA

Data Sheet

0-90: $17.01
XC2S100-5FG456C
XC2S100-5FG456C


IC FPGA 2.5V 600 CLB'S 456-FBGA

Data Sheet

0-1: $16.25
XC2S100-5FG456I
XC2S100-5FG456I


IC FPGA 2.5V I-TEMP 456-FBGA

Data Sheet

Negotiable
XC2S100-5FGG256C
XC2S100-5FGG256C


IC SPARTAN-II FPGA 100K 256-FBGA

Data Sheet

0-90: $14.79
