Product Summary
The VN340SP is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from over temperature and short circuit. The open drain diagnostic output indicates overtemperature conditions. Each I/O is pulled down when over temperature condition of the relative channel is verified.
Parametrics
VN340SP absolute maximum ratings: (1)VCC Power Supply Voltage: 45 V; (2)-VCC Reverse Supply Voltage: -4 V; (3)IOUT Output Current (cont.): Internally Limited A; (4)IR Reverse Output Current (per channel): -6 A; (5)IIN Input Current (per channel): ±10 mA; (6)IDIAG DIAG Pin Current: ±10 mA; (7)VESD Electrostatic Discharge (1.5 kW, 100 pF): 2000 V; (8)EAS Single Pulse Avalance Energy per Channel Not Simultaneously (see figure 1): 400 mJ; (9)Ptot Power Dissipation at Tc ≤ 25 ℃: Internally Limited W; (10)Tj Junction Operating Temperature: Internally Limited ℃; (11)Tstg Storage Temperature: -55 to 150 ℃.
Features
VN340SP features: (1)Output current: 0.7A per channel; (2)shorted load and overtemperature protections; (3)built-icurrent limiter; (4)under voltage shut down; (5)opedraidiagnostic output; (6)fast demagnetizatioof inductive loads; (7)protectioagainst loss of ground; (8)conforms to iec 1131-2.

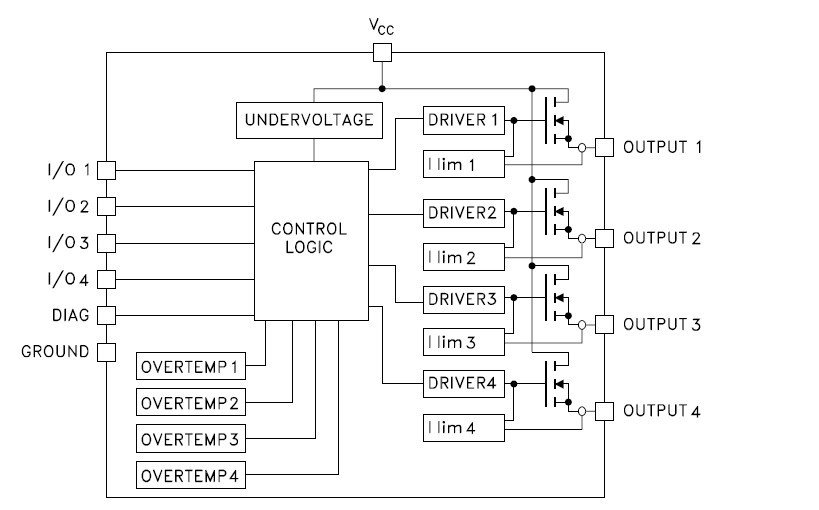

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VN340SP |
STMicroelectronics |
Power Driver ICs Quad High Side |
Data Sheet |
Negotiable |
|
||||||||||||
 |
VN340SP(8933) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
VN340SP-E |
STMicroelectronics |
Solid State Relays SS RELAY |
Data Sheet |
|
|
||||||||||||
|
VN340SP13TR |
STMicroelectronics |
Power Driver ICs Quad High Side |
Data Sheet |
Negotiable |
|
||||||||||||
|
VN340SP-33-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
|
VN340SPTR-33-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
|
VN340SPTR-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
