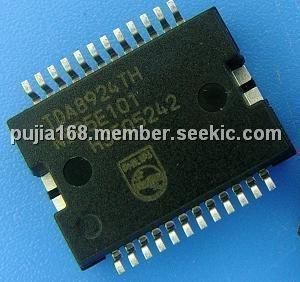

TDA8924TH

audio power amplifier, 240W, 24HSOP, ±12.5 V ~ 30 V, TDA8924TH, Philips

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.85~4.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.85~4.85

PartNumber:: TDA8924TH

Brand:: Philips Electronics India Limited - PHILIPS | Pack: HSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:TDA8924TH
US $3.85 - 4.85
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TDA8924TH is a high efficiency class-D audio power amplifier with very low dissipation. The typical output power is 2 × 120 W. The TDA8924TH comes in a HSOP24 power package with a small internal heatsink. Depending on supply voltage and load conditions a very small or even no external heatsink is required. The amplifier operates over a wide supply voltage range from ±12.5 V to ±30 V and consumes a very low quiescent current. The applications of the TDA8924TH include Television sets, Home-sound sets, Multimedia systems, All mains fed audio systems and Car audio (boosters).

Parametrics

TDA8924TH absolute maximum ratings: (1)VP, supply voltage: ±30 V max; (2)VMODE, input voltage on pin MODE with respect to SGND:- 5.5 V max; (3)Vsc, short-circuit voltage on output pins: ±30 V max; (4)IORM, repetitive peak current in output pin: 11.3 A max; (5)Tstg, storage temperature: -55 +150℃; (6)Tamb, ambient temperature: -40 +85℃; (7)Tvj, virtual junction temperature: - 150℃ max.

Features

TDA8924TH features: (1)High efficiency (~90 %); (2)Operating voltage from ±12.5 V to ±30 V; (3)Very low quiescent current; (4)Low distortion; (5)Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL); (6)Fixed gain of 28 dB in SE and 34 dB in BTL; (7)High output power; (8)Good ripple rejection; (9)Internal switching frequency can be overruled by an external clock; (10)No switch-on or switch-off plop noise; (11)Short-circuit proof across the load and to the supply lines; (12)Electrostatic discharge protection; (13)Thermally protected.
