Product Summary
The PC929 is a Short circuit Protector Circuit Built-in Photocoupler Suitable for Inverter-Driving MOS-FET/IGBT. The applicaiton of the device is IGBT control for inverter drive.
Parametrics
PC929 absolute maximum ratings: (1)Input, Forward current, IF: 20 mA; Reverse voltage, VR: 6V when Ta=25℃; ; (2)Output, Supply voltage, VCC: 35 V; O1 output current, IO1: 0.1 A; O1 peak output currrent, IO1P: 0.4 A; O2 output current, IO2: 0.1A; O2 peak output current, IO2P: 0.4 A; O1 output voltage, VO1: 35 V; Power dissipation, PO: 500 mW; Overcurrent detecting voltage, VC: VCC V; Overcurrent detecting current, IC: 30 mA; Error signal output voltage, VFS: VCC V; Error signal output current, IFS: 20 mA; (3)Total power dissipation, Ptot: 550 mW; (4)Isolation voltage, Viso: 4 000 Vrms; (5)Operating temperature, Topr: - 25 to + 80℃; (6)Storage temperature, Tstg: - 55 to + 125℃; (7)Soldering temperature, Tsol: 260℃ (for 10 sec).
Features
PC929 features: (1)Built-in IGBT shortcircuit protector circuit; (2)Built-in direct drive circuit for IGBT drive; (3)High speed response (tPLH, tPHL: MAX. 0.5 ms); (4)High isolation voltage (Viso: 4000Vrms); (5)Half lead pin pitch (p=1.27 mm) package type; (6)Recognized by UL, file NO. E64380.

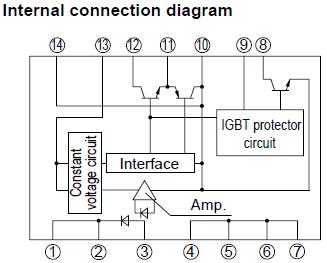

Diagrams
