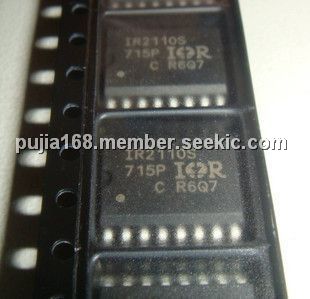

IR2110S

Product Summary

The IR2110S is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs of the IR2110S are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays of the IR2110S are matched to simplify use in high frequency applications. The IR2110S floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts.

Parametrics

IR2110S absolute maximum ratings: (1)VB, High side floating supply voltage: -0.3 to 525V; (2)VS, High side floating supply offset voltage: VB - 25 to VB + 0.3V; (3)VHO, High side floating output voltage: VS - 0.3 to VB + 0.3V; (4)VCC, Low side fixed supply voltage: -0.3 to 25V; (5)VLO, Low side output voltage: -0.3 to VCC + 0.3V; (6)VDD, Logic supply voltage: -0.3 to VSS + 25V; (7)VSS, Logic supply offset voltage: VCC - 25 to VCC + 0.3V; (8)VIN, Logic input voltage (HIN, LIN & SD): VSS - 0.3 to VDD + 0.3V; (9)dVs/dt, Allowable offset supply voltage transient: 50 V/ns; (10)PD, Package power dissipation @ TA ≤ +25℃: 1.25W; (11)RTHJA, Thermal resistance, junction to ambient: 75℃/W; (12)TJ, Junction temperature: 150℃; (13)TS, Storage temperature: -55 150℃; (14)TL, Lead temperature (soldering, 10 seconds): 300℃.

Features

IR2110S features: (1)Floating channel designed for bootstrap operation Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout for both channels; (4)3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset; (5)CMOS Schmitt-triggered inputs with pull-down; (6)Cycle by cycle edge-triggered shutdown logic; (7)Matched propagation delay for both channels; (8)Outputs in phase with inputs.

Diagrams
