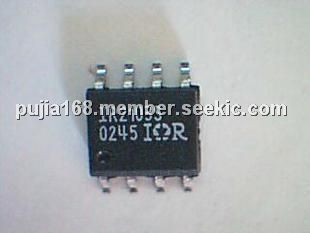

IR2103S

IC driver, half bridge, 600V, 8SOIC, Internal set deadtime, 1.0W, Floating channel

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.45

PartNumber:: IR2103S

Brand:: International Rectifier - IR | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason Chan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-07

From Other Seller

Part Number:IR2103S
US $0.35 - 0.45
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
PCM63P-K

US $18.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

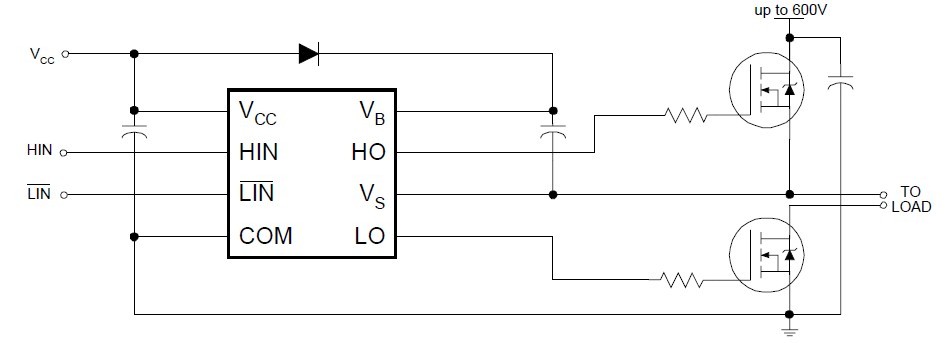

The IR2103S is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The IR2103S logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The IR2103S output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Parametrics

IR2103S absolute maximum ratings: (1)High side floating supply voltage:-0.3V to 625V; (2)High side floating supply offset voltage:VB - 25V to VB + 0.3V; (3)High side floating output voltage:VS - 0.3V to VB + 0.3V; (4)Low side fixed supply voltage:-0.3V to 25V; (5)Low side output voltage:-0.3V to VCC + 0.3V; (6)Logic supply voltage:-0.3V to VSS + 25V; (7)Logic supply offset voltage:VCC - 25V to VCC + 0.3V; (8)Logic input voltage (HIN, LIN & SD):VSS - 0.3V to VDD + 0.3V; (9)Allowable offset supply voltage transient:50 V/ns; (10)Package power dissipation: 1.0W; (11)Thermal resistance, junction to ambient:125℃/W; (12)Junction temperature:150℃; (13)Storage temperature:-55℃ to 150℃; (14)Lead temperature (soldering, 10 seconds):300℃.

Features

IR2103S features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +600V; (3)Tolerant to negative transient voltage; (4)dV/dt immune; (5)Gate drive supply range from 10 to 20V; (6)Undervoltage lockout; (7)3.3V, 5V and 15V logic compatible; (8)Cross-conduction prevention logic; (9)Matched propagation delay for both channels; (10)Internal set deadtime; (11)High side output in phase with HIN input; (12)Low side output out of phase with LIN input.
