Product Summary
The CY7C68013A-56LFXC is a low-power version of the EZ-USB FX2, which is a highly integrated, low-power USB 2.0 microcontroller. By integrating the USB 2.0 transceiver, serial interface engine (SIE), enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages with low power to enable bus powered applications. The CY7C68013A-56LFXC is used in Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players, Networking.
Parametrics
CY7C68013A-56LFXC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: -0.5 V to +4.0 V; (4)DC Input Voltage to Any Input Pin: 5.25 V; (5)DC Voltage Applied to Outputs in High Z State: -0.5V to VCC + 0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.
Features
CY7C68013A-56LFXC features: (1)USB 2.0-USB-IF high speed certified; (2)Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor; (3)Fit, form and function compatible with the FX2; (4)Ultra Low power: ICC no more than 85 mA in any mode; (5)16 KBytes of on-chip Code/Data RAM; (6)Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints; (7)8- or 16-bit external data interface; (8)Smart Media Standard ECC generation; (9)GPIF (General Programmable Interface).

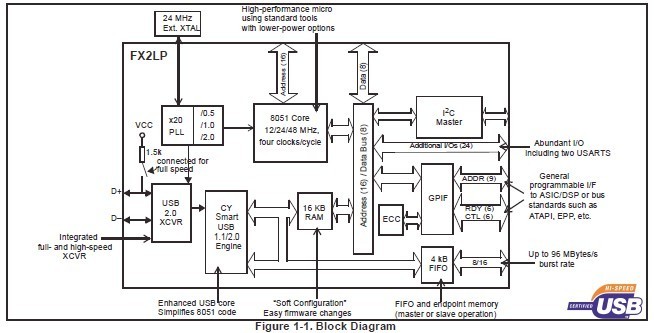

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C68013A-56LFXC |
Cypress Semiconductor |
8-bit Microcontrollers (MCU) EZ USB FX2LP LO PWR LO COM |
Data Sheet |
