Product Summary

The ADV7123KSTZ140 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The applications of the ADV7123KSTZ140 include: (1)Digital Video Systems (1600 × 1200 @ 100 Hz); (2)High Resolution Color Graphics; (3)Digital Radio Modulation; (4)Image Processing; (5)Instrumentation; (6)Video Signal Reconstruction.

Parametrics

ADV7123KSTZ140 absolute maxing ratings: (1)VAA to GND: 7 V; (2)Voltage on any Digital Pin: GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): -40℃ to +85℃; (4)Storage Temperature (TS): -65℃ to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase Soldering (1 Minute): 220℃; (8)IOUT to GND2: 0 V to VAA.

Features

ADV7123KSTZ140 features: (1)330 MSPS Throughput Rate; (2)Triple 10-Bit D/A Converters; (3)RS-343A/RS-170 Compatible Output; (4)Complementary Outputs; (5)DAC Output Current Range 2 mA to 26 mA; (6)TTL Compatible Inputs; (7)Internal Reference (1.23 V); (8)Single-Supply 5 V/3.3 V Operation; (9)48-Lead LQFP Package; (10)Low Power Dissipation (30 mW Min @ 3 V); (11)Low Power Standby Mode (6 mW Typ @ 3 V); (12)Industrial Temperature Range (–40℃ to +85℃).

Diagrams

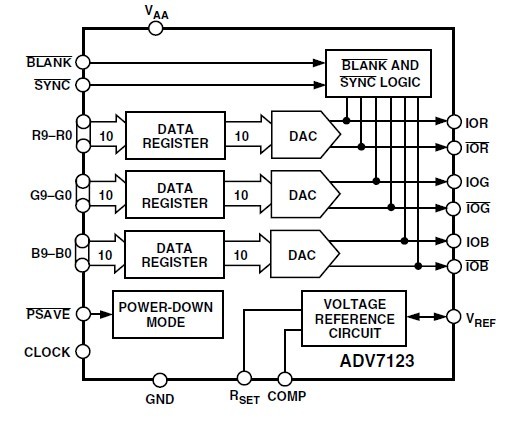

ADV7123KSTZ140 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADV7123KSTZ140
ADV7123KSTZ140


IC DAC VIDEO TRPL HI SPD 48-LQFP

Data Sheet

0-1: $7.40
1-10: $6.73
10-100: $5.72
100-250: $5.21
250-500: $4.88
500-1000: $4.49
