Product Summary

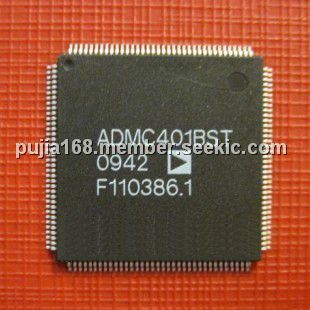

The ADMC401BST is a Single-Chip, DSP-Based High Performance Motor Controller.
Parametrics
ADMC401BST absolute maxing ratings: (1)Supply Voltage: –0.3 V to +7 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Output Voltage Swing: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient): –40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature (5 sec): +280℃.
Features
ADMC401BST features: (1)Single Cycle Instruction Execution (38.5 ns); (2)ADSP-21xx Family Code Compatible; (3)16-Bit Arithmetic and Logic Unit (ALU); (4)Single Cycle 16-Bit × 16-Bit Multiply and Accumulate Into 40-Bit Accumulator (MAC); (5)32-Bit Shifter (Logical and Arithmetic); (6)Multifunction Instructions; (7)Single Cycle Context Switch; (8)Zero Overhead Looping; (9)Conditional Instruction Execution; (10)Two Independent Data Address Generators.

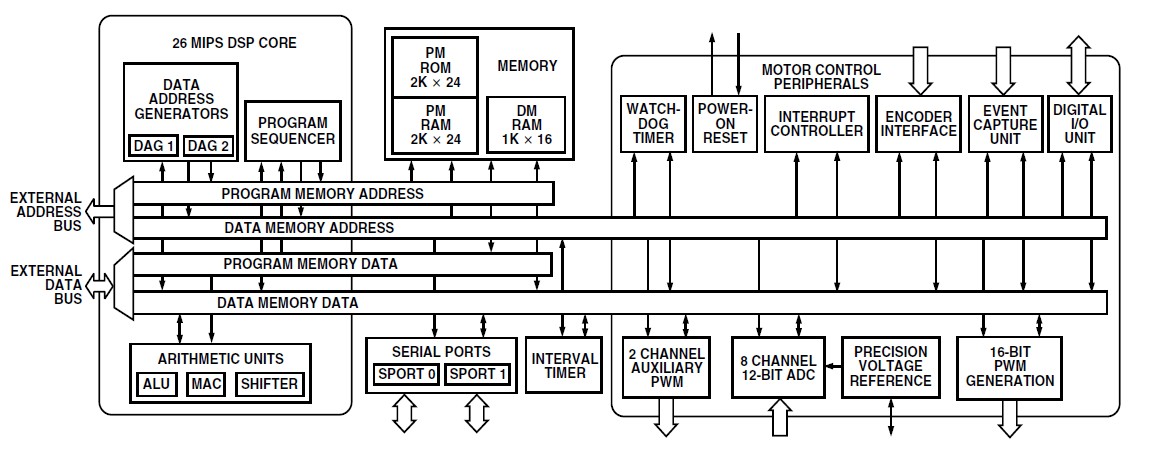

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
ADMC401BSTZ |
IC DSP 8CH 12BIT MOTCTRL 144LQFP |
Data Sheet |
|
|
||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
ADMC200 |
Other |
Data Sheet |
Negotiable |
|
||||||||
ADMC200AP |
Analog Devices Inc |
IC MOTION CO-PROC 12.5MHZ 68PLCC |
Data Sheet |
Negotiable |
|
|||||||
ADMC201 |
Other |
Data Sheet |
Negotiable |
|
||||||||
ADMC201AP |
Analog Devices Inc |
IC MOTION CO-PROC 25MHZ 68PLCC |
Data Sheet |
Negotiable |
|
|||||||
ADMC300 |
Other |
Data Sheet |
Negotiable |
|
||||||||
ADMC300-ADVEVALKIT |
Analog Devices Inc |
KIT EVALUATION FOR ADMC300 |
Data Sheet |
Negotiable |
|
