Product Summary

The AD603AR is a low noise, voltage-controlled amplifier for use in RF and IF AGC systems. It provides accurate, pin selectable gains of –11 dB to +31 dB with a bandwidth of 90 MHz or +9 dB to +51 dB with a bandwidth of 9 MHz. Any intermediate gain range may be arranged using one external resistor. The AD603AR can drive a load impedance as low as 100 W with low distortion. For a 500 W load in shunt with 5 pF, the total harmonic distortion for a ±1 V sinusoidal output at 10 MHz is typically –60 dBc. The applications of the AD603AR include: RF/IF AGC Amplifier, Video Gain Control, A/D Range Extension, Signal Measurement.

Parametrics

AD603AR absolute maximum ratings: (1)Supply Voltage ±VS: ±7.5 V; (2)Internal Voltage VINP (Pin 3): ±2 V Continuous; ±VS for 10 ms; GPOS, GNEG (Pins 1, 2): ±VS; (3)Internal Power Dissipation: 400 mW; (4)Operating Temperature Range: –40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD603AR features: (1)Linear in dB Gain Control; (2)Pin Programmable Gain Ranges: -11 dB to +31 dB with 90 MHz Bandwidth; +9 dB to +51 dB with 9 MHz Bandwidth; (3)Any Intermediate Range, e.g., -1 dB to +41 dB with 30 MHz Bandwidth; (4)Bandwidth Independent of Variable Gain; (5)1.3 nV √Hz ̄ Input Noise Spectral Density; (6)±0.5 dB Typical Gain Accuracy; (7)MIL-STD-883 Compliant and DESC Versions Available.

Diagrams

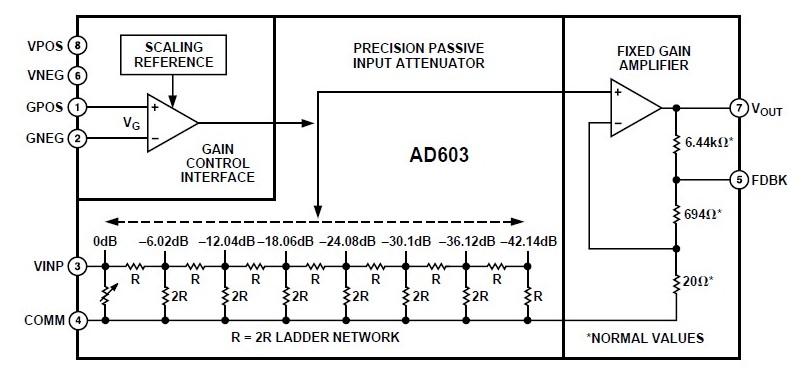

AD603AR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD603AR
AD603AR


IC AMP VGA 90MHZ LN 50MA 8SOIC

Data Sheet

0-41: $6.06
AD603AR-REEL
AD603AR-REEL


IC AMP VGA 90MHZ LN 50MA 8SOIC

Data Sheet

0-2500: $4.37
AD603AR-REEL7
AD603AR-REEL7


IC AMP VGA 90MHZ LN 50MA 8SOIC

Data Sheet

Negotiable
AD603ARZ
AD603ARZ


IC AMP VGA 90MHZ LN 50MA 8SOIC

Data Sheet

0-1: $6.38
1-10: $5.80
10-100: $4.93
100-250: $4.49
250-500: $4.20
500-1000: $3.87
AD603ARZ-REEL
AD603ARZ-REEL


IC AMP VGA 90MHZ LN 50MA 8SOIC

Data Sheet

0-2500: $3.87
AD603ARZ-REEL7
AD603ARZ-REEL7


IC AMP VGA 90MHZ LN 50MA 8SOIC

Data Sheet

0-750: $4.00
