Product Summary

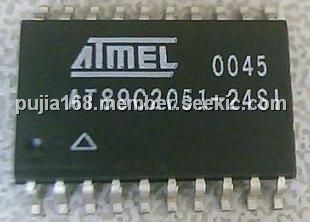

The AT89C2051-24SI is a low-voltage, high-performance CMOS 8-bit microcomputer with 2K Bytes of Flash programmable and erasable read only memory (PEROM). The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard MCS-51 instruction set. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the AT89C2051-24SI is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.

Parametrics

AT89C2051-24SI absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 25.0 mA.

Features

AT89C2051-24SI features: (1)Compatible with MCS-51 Products; (2)2K Bytes of Reprogrammable Flash Memory: Endurance: 1,000 Write/Erase Cycles; (3)2.7V to 6V Operating Range; (4)Fully Static Operation: 0 Hz to 24 MHz; (5)Two-Level Program Memory Lock; (6)128 x 8-Bit Internal RAM; (7)15 Programmable I/O Lines; (8)Two 16-Bit Timer/Counters; (9)Six Interrupt Sources; (10)Programmable Serial UART Channel; (11)Direct LED Drive Outputs; (12)On-Chip Analog Comparator; (13)Low Power Idle and Power Down Modes.

Diagrams

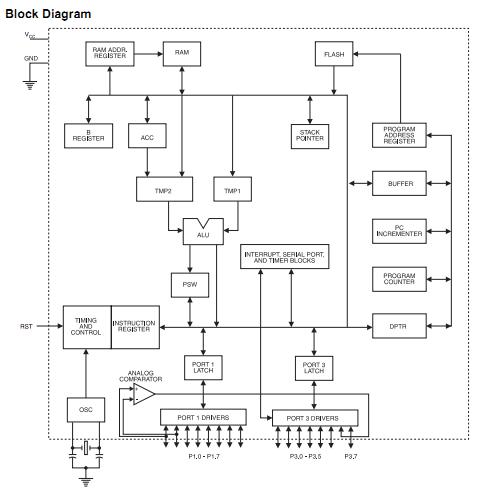

AT89C2051-24SI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT89C2051-24SI
AT89C2051-24SI

Atmel

8-bit Microcontrollers (MCU) 20 PINS UART 2K FLASH - 24MHZ

Data Sheet

Negotiable
